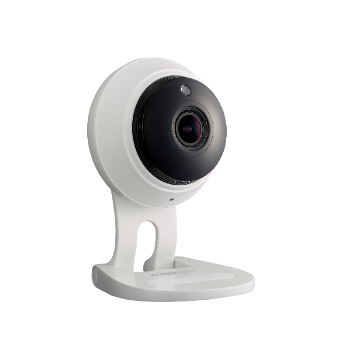

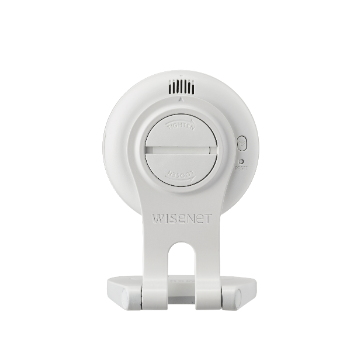

SmartCam HD Plus
SNH-C6417BN (White)
Clever, convenient
SmartCam HD Plus
Product features |
Contents |
---|---|
|
|
Stay connected
Samsung Wisenet SmartCam cares for your loved ones while you are away.
Key features
Don't miss a thing
Full HD and digital zoom
View everything in 1080p Full HD quality. With 4x digital zoom, you’ll catch every little detail.
There’s more to see
SmartCam captures an ultra-wide 130° field of view with built-in automatic lens-distortion correction.
Smooth night vision
Always get a smooth picture – accurately correcting low-light video and producing clear footage even in pitch-black darkness.
Perfect lighting every time
SmartCam’s Wide Dynamic Range automatically detects when the light needs balancing and adjusts to keep your viewing clear, even in harsh lighting.
Automatic adjustments
SmartCam automatically transitions between day & night viewing modes. No matter what time of day, you will always get the best picture.
Talk back and forth
Two-way talk lets you check in using SmartCam’s built-in speaker and mic. By pushing the Mic button on the Wisenet SmartCam+ App, you stay connected.
Detect sound and movement
Push notifications alert you if SmartCam detects noise or movement. You can select up to three areas using Motion Zone Select all from your mobile device.
Easy to save, easy to track
Record and save video using a micro SD card (up to 128GB, SDXC), so you can easily track back to the activity captured. You can record continuously, or when SmartCam automatically detects sound or motion.
We are here to
Give you a peace of mind
Product summary
Dimensions
Specifications
SNH-C6417BN
Video
Imaging Device | 1/3” 2M CMOS |
Effective Pixels | 1944 (H) x 1092 (V) |
Scanning System | Progressive |
Low Light Performance | 0.3Lux (color), 0Lux (black/white) |
Lens
Focal Length | 2.8mm |
Field of View | H: 113° V: 63° D: 130° |
Focus Control | Fixed Lens |
Operational
IR LED | 850nm |
Viewable Length | 33ft (10m) |
Day & Night | True D/N (auto) |
Wide Dynamic Range | HDR |
Lens Distortion Correction | Off / On |
Contrast Enhancement | Auto |
Digital Noise Reduction | Support (2D+3D Noise Filter) |
Motion Detection | Off / On |
Audio Detection | Off / On |
White Balance | Auto |
Digital Zoom | 4x (mobile), 10x (web) |
Flip/Mirror | Off / On |
Memory Slot | SDXC Memory Slot (max. 128GB) |
Network
Wireless | Wi-Fi 802.11b/g/n (Single Band) |
Video Compression Format | H.264 |
Resolution | 1920x1080 / 1280x720 / 640x360 |
Max. Framerate | H.264, 1920x1080 30FPS |
Streaming Capability | Multiple Streaming (up to 4 profiles) |
Audio I/O | Built-in Mic and Speaker |
Audio Compression Format | G.711 u-law |
Audio Communication | 2-way audio / Half duplex |
Security |
HTTPS (SSL) Login Authentication, Digest Login Authentication |
Environmental
Operating Temperature/Humidity | 32°~104°F (0°~40°C) / 20% ~ 80% RH |
Ingress Protection | Indoor |
Electrical
Input Voltage / Current | 5V/2A |
Power Consumption | micro-USB Type |
Mechanical
Color / Material | White / Plastic: SNH-C6417BN |
Dimension (WxHxD/ΦxH) | Φ65mm x 36.5mm (without bracket) |
Weight | 137g |
